• High Sensitivity

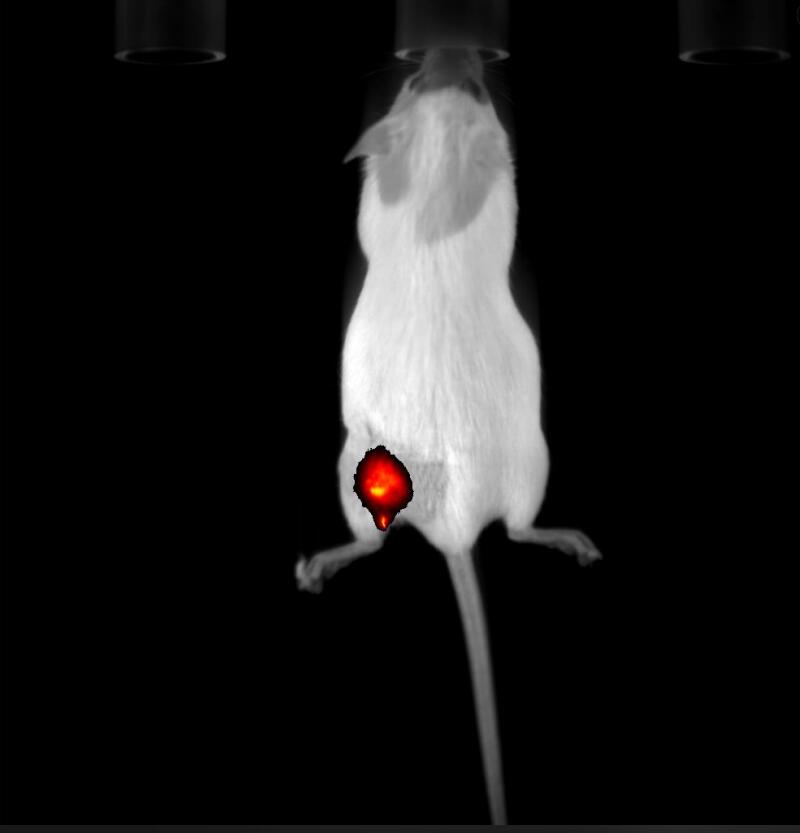

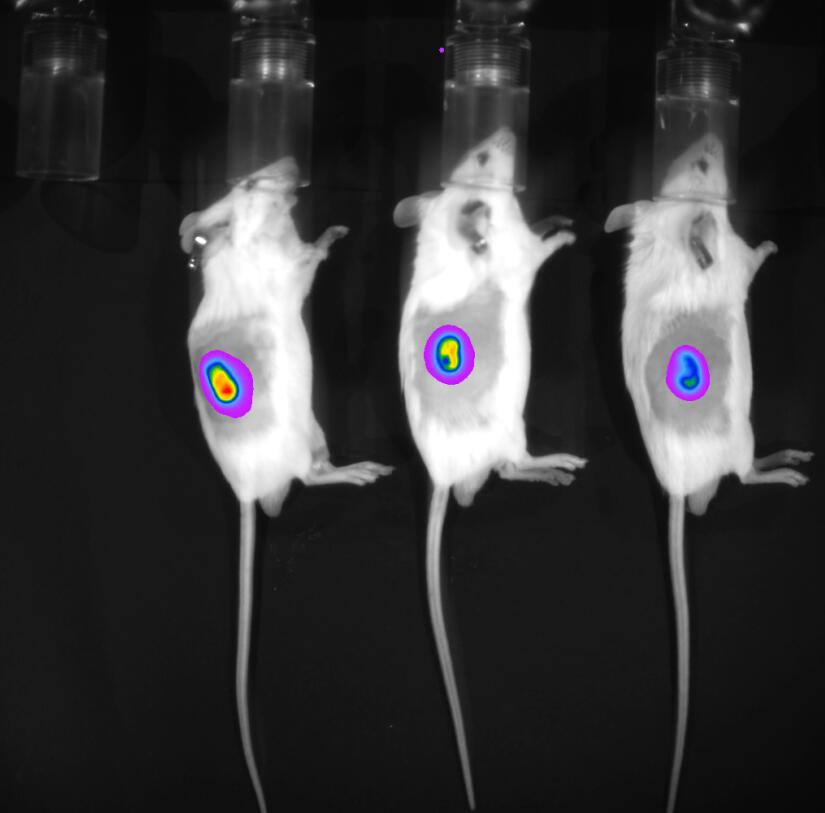

Back-illuminated CCD camera with cooling and quantum efficiency up to 95%. Deep cooling effectively reduces dark current background noise, ensuring high sensitivity for detecting weak signals, enabling in vivo bioluminescence and fluorescence imaging experiments.

• High Image Clarity

The standard camera features 4-megapixel resolution. Additional options with higher resolution cameras are available (from 1000×1000 to 4000×4000 pixels). The system provides detailed, high-quality images without compromising sensitivity.

• High Imaging Speed

High-speed fixed lens with f/≤0.9 aperture significantly increases optical signal collection speed. This reduces image acquisition time, decreases noise from long exposures, and effectively improves the signal-to-noise ratio in the final image.

• Full Spectrum

Durable, high-efficiency halogen light source provides fluorescence excitation across the full spectrum from 380 to 780 nm with extension capability to 1000 nm. Compared to LED sources, it delivers higher efficiency and intensity in the near-infrared range, enabling superior image quality for near-infrared fluorescence imaging in vivo.

• High Throughput

Enables simultaneous imaging of 16 mice, meeting high-throughput sample screening requirements.

• Multiple Sample Handling

The system features a field of view for imaging of at least 400×400 mm. The continuously adjustable height stage accommodates various animal models, including zebrafish, mice, rats, rabbits, monkeys, and pigs.

• Multifunctionality

Supports the following imaging modalities: high-resolution X-ray imaging, Cherenkov radiation imaging, upconversion fluorescence imaging.

1. Genetic Research:

Gene therapy, functional genome analysis, gene expression regulation, transgenic animal models.

2. Oncology Research:

Tumor formation and apoptosis, tumor metastasis, tumor immunology, tumor development mechanisms and therapy.

3. Stem Cell Research:

Stem cell genetics and development, stem cell migration (homing), damaged stem cell recovery, stem cell therapy.

4. Pharmaceutical Research:

New drug screening, therapeutic efficacy evaluation, gene drug development, drug metabolism and delivery studies.

5. Disease Research:

Cardiovascular and cerebrovascular diseases, metabolic disorders, immune diseases, bacterial/viral infections, and inflammatory process studies.

6. Materials Research:

Biomaterials, targeted delivery materials, quantum dots, nanoprobes, nanopreparation delivery systems.

• Professional Software

The LabEasy™ software series features a completely redesigned interface that is simple and intuitive, enabling rapid mastery of controls and effortless execution of imaging tasks that meet diverse experimental requirements.

Equipped with intelligent AI-based algorithms with deep learning capability. The statistical analysis function for spectral distribution in images facilitates rapid recognition of useful signals and their separation from background. NIST (USA) standard calibration, professional quantitative analysis functions, fast and accurate region of interest (ROI) definition. Supports quantitative analysis in various units, including CTS, CPS, Ph/s/cm²/sr, nW/cm².
